Click button came off the Reel

[Reel Doc]

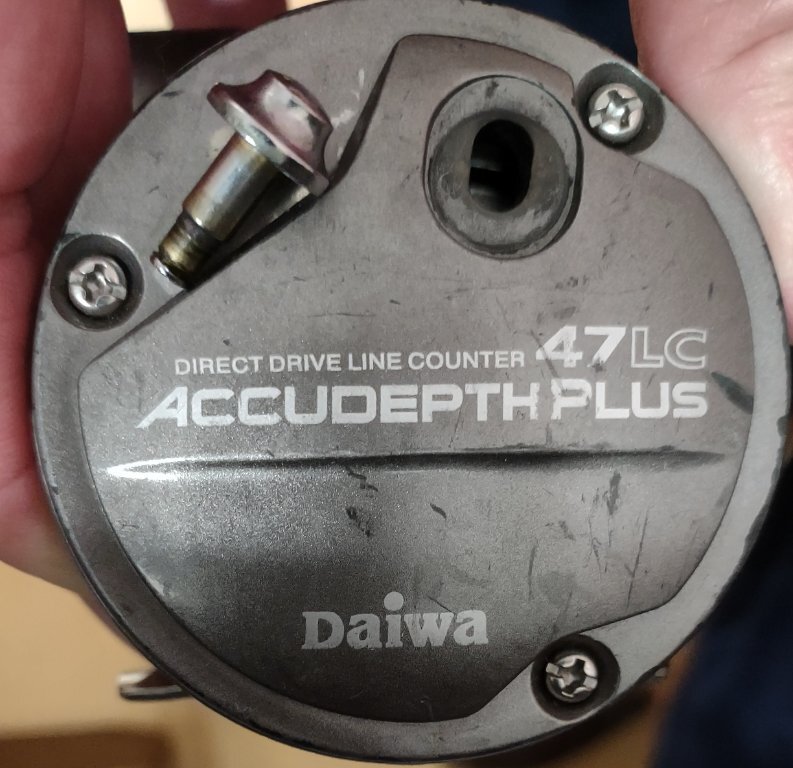

Found the schematic for this reel and looks like there is a washer inside but wondering what else it should be attached to.   The button fell off in my hand after flipping the clicker off to let out line.  If anyone knows what is needed to repair the I would appreciate a response.

[GAMBLER]

Rochester Reel Repair

[stinger]

the parts are probably inside. Should be a clicker paw and snap ring.



Here is the parts breakdown: https://cdn.shopify.com/s/files/1/0384/6645/3641/files/47LC.pdf

[Reel Doc]

  On 8/19/2024 at 2:40 AM, stinger said:

the parts are probably inside. Should be a clicker paw and snap ring.



Here is the parts breakdown: https://cdn.shopify.com/s/files/1/0384/6645/3641/files/47LC.pdf

Expand

Thanks.  Any idea if parts are still available for these reels?

[spoonfed-1]

  On 8/19/2024 at 11:22 AM, Reel Doc said:

Thanks.  Any idea if parts are still available for these reels?

Expand

Should be. I got mine directly from daiwa but that was a few years ago. Call them. Usually it's the clicker pawl and the clicker spring if the shaft on the button isn't worn. Shouldn't be more that a few bucks so I ordered spares when I got mine. In fact let me check my reel repair box and see if still have them. I remember I sold daiwa parts package to somebody on this site but I don't remember exactly what. If you can take that side cover off and post a picture of the inside that would help.



Edited August 19, 2024 by spoonfed-1

[spoonfed-1]

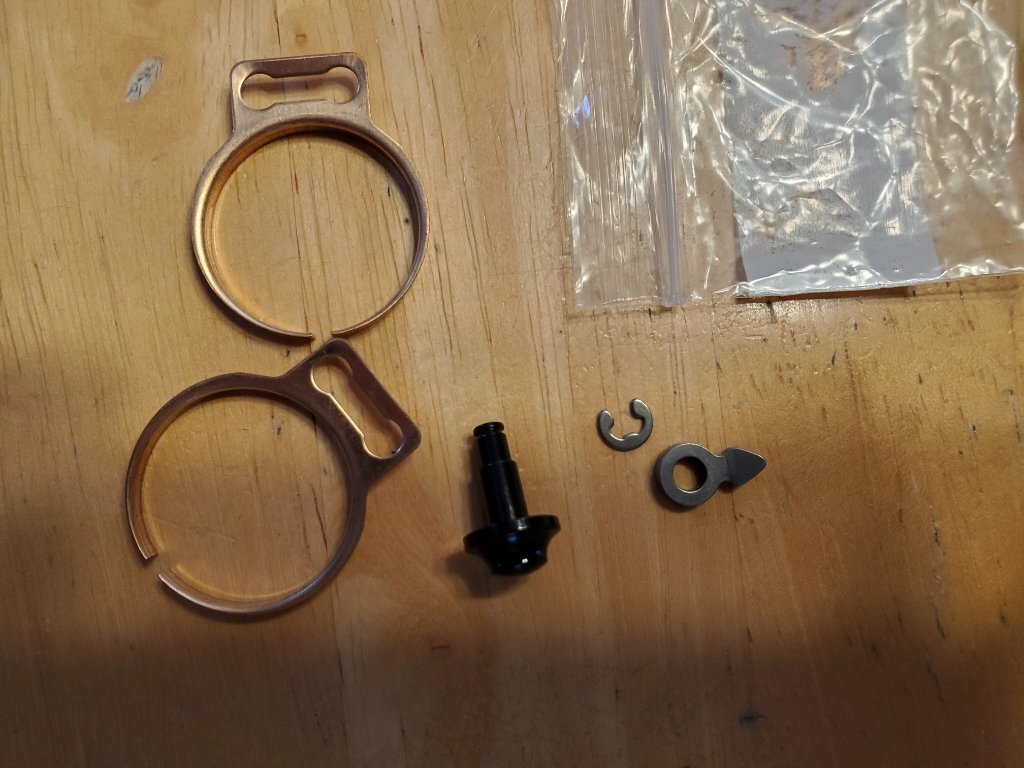

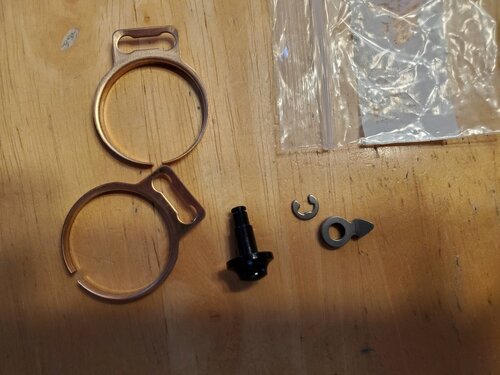

Yup. Still have a spare set of clicker parts. These fit either the 27 or 47 series. Let me know if you have trouble getting them.



Edited August 19, 2024 by spoonfed-1

[Reel Doc]

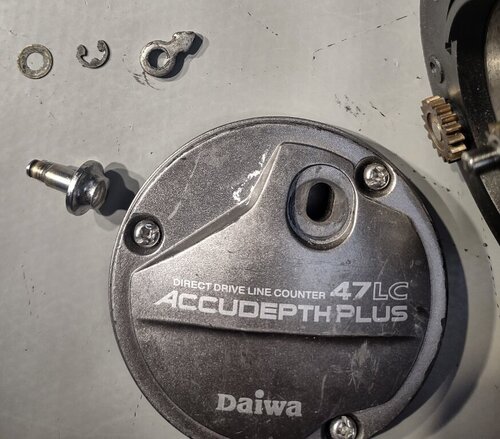

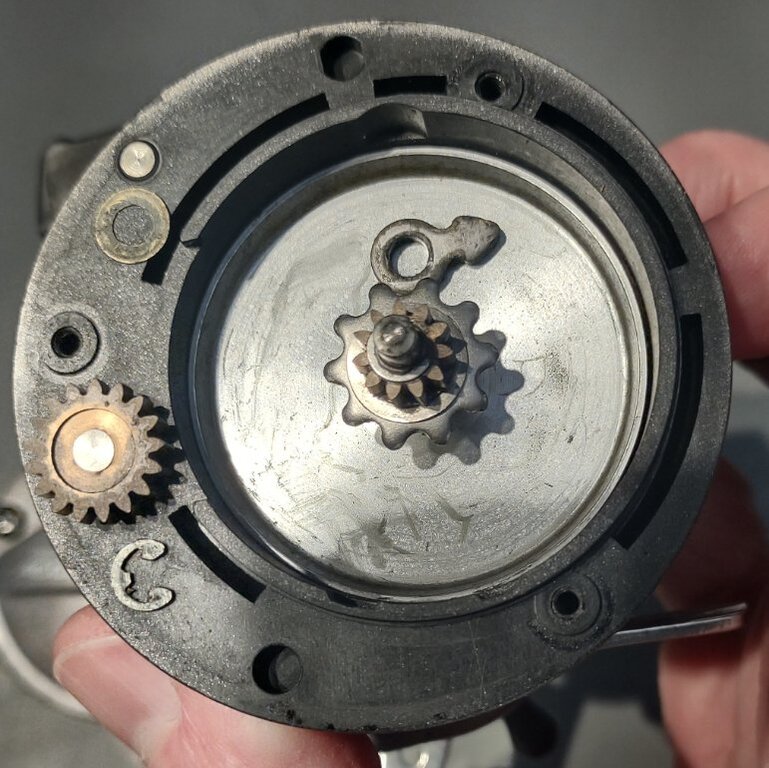

Opened it up and here's the result.  Must be the washer and half washer are worn out?

[GAMBLER]

  On 8/20/2024 at 1:15 AM, Reel Doc said:

Opened it up and here's the result.  Must be the washer and half washer are worn out?

Expand

The retaining clip is worn.  It is the only part you will have to replace.

[HB2]

Try to squeeze it together to make it tighter a little with some pliers . With a little finesse , it might work .

[Pete Collin]

Those little C clips can be bought at any auto parts store.

[Reel Doc]

  On 8/20/2024 at 10:20 AM, Pete Collin said:

Those little C clips can be bought at any auto parts store.

Expand

Is the thinking that the C clip is worn while the other items are probably fine?  Helpful or harmful to add lubricant here.

[Pete Collin]

No lube. If it's loose just squeeze it closed a little.
