losing downrigger

[Chinook Chaser]

I have an islander with 3 Cannon stx riggers. They are super fast. When they stop at the top they bounce. To me it bounces a lot. I am curious as to anyone's experience here because I am concerned about possibly losing a downrigger. Maybe I am just paranoid. This is my first year with the set up and I am considering an aluminum or steel railing to mount riggers and rod holders to for extra support. I know more is probably better but I would prefer to forgo the expense. Any advise or ideas would be appreciated.

[TileMan Dan]

I run 4 of the Mag 10 stx's. Been on boat for the last four years.  The only issue I had were the swivel bases that came with these. Had one totally shatter when I was setting a line.Luckily I was able to grab it before it went totally over.

[Chinook Chaser]

on an aluminum boat I am assuming? should I change out to a heavy duty base? I believe they sell them.

[mr 580]

To remove some of the "bounce" several companies offer ball snubbers. I've used Amish Outfitter snubbers on my Cannons for several years and have been happy with them. As far as mounting riggers on an aluminum boat I'd use backer material and try to tie in to the structure. Track systems spreading the load with plenty of backer make sense to me.

[TileMan Dan]

No I have a glass boat with tracks

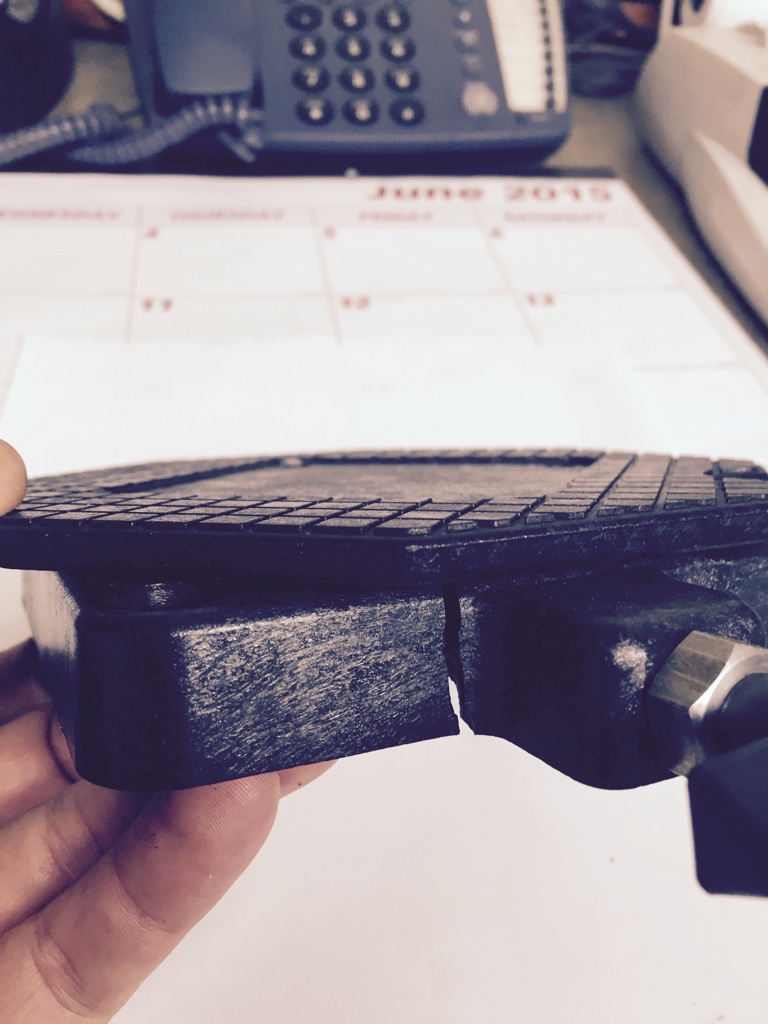

This first pic is what happen when it let loose. The second pic is of another base that cracked and I wasnt aware of. Cannon offered to replace but opted to go with upgraded all metal ones. Just had to pay the difference.

[Sk8man]

I think Mr. 580 has it right. In any case you want to have the bases themselves stabilized to the maximum degree possible to reduce torque and "flexing" on the gunwales and and usually a stiff backing plate  would go a long way in doing this. Another thing to keep in mind (which most folks don't think about) is setting the "drag" on the downrigger so that if you hang up on bottom your downrigger isn't ripped out along with some of the gunwale. I saw this actually happen to someone during a derby on Seneca years ago (downrigger recovered by a hired diver) and it severely damaged the boat (huge chunk of fiberglass ripped out).

Edited September 29, 2016 by Sk8man

[Chinook Chaser]

Currently I have traxtech tracks on each side with each rigger on a riser. It's necessary for them to be on a riser in order to swivel and clear a the edge on the side of the islander. Each track is supported underneath with plates. Guess my biggest worry is the base cracking. I do see that cannon sells stainless bases. That is an option or for probably the same total price of doing all 3 riggers or a small amount more I could use a heavy aluminum or steal rail/riser and remove a large amount of the bounce. It would also give me a few more inches of height on those choppy days. Anyone no where I can get risers? Maybe they call them something else.

[TileMan Dan]

Cannon sells pedestals with a swivel in 4 0r 6" heights.  That is what I went with.

[RodBuster]

Try these. It stops the ball in the water, causing the water to act as a shock absorber. They are called Cannon Shortstops



[Guest]

cannon has changed the swivel bases, so it might not be an issue.

[Chinook Chaser]

ok thanks and also yes I use the stops and they stop at the waterline and still lots of bounce. It may come down to me just being a worrier.

[Sk8man]

The risers are probably a part of it because I had the Cannon pedestals on my previous boat and different downriggers and the bouncing effect was noticeable in that situation as well. The higher up they are the more this is accentuated because it changes the center of gravity regarding the weight and increases torque at the base.

Edited September 29, 2016 by Sk8man

[Silver Fox]

This is exactly why I spent the extra $ on the Digi troll 10's this past spring. The speed of those mags were way too much and the bounce was nuts. My Digi trolls have 3 speed settings and I have no issue and love them.

Lake Ontario salmon fishing charters

[mr 580]

Here's a pic of my setup for Mag 10HS Long Arm- Traxtech riser with swivel then short stop, Walker release, Amish Outfitter 9" snubber and weight.  I don't see anymore blow back and snubber has ended the snap/lost weight issue on the high speed riggers.  For my Mag 5ST's I use Cannon swivel then same arrangement for weight except for a Black's clincher release on my probe rigger.  Think I've ran same snubbers for 4 years.  They come in 2 pack- 6 inch for $8.50 and 9" for $9,50 -they use 500lb Spectra inside the tubing for these.  IMO real cheap way to take that snap out when the rigger stops.  I have no interest in Amish Outfitters either.

[Markhum2006]

I have two Mag 10 STXs on 6 inch swivel risers. I have used them for 4 years now and have never had a problem with them. After the first year, I started using snubbers as mentioned above and it really reduced the bouncing effect when lowering and raising the balls. The drag is important as I have been hooked up before and having it set properly has saved my boat and equipment. There are very fast but I love that since I can lower and raise the ball to the depths I want when I see a bait ball on my fishfinder. I also don't use weights greater than 15 lbs due to the speed of the riggers. I feel that going heavier will put too much pressure on the base and the boat. I am fine compensating for the blowback with my fishhawk.

[Bozeman Bob]

I have two Mag 10 STXs on 6 inch swivel risers. I have used them for 4 years now and have never had a problem with them. After the first year, I started using snubbers as mentioned above and it really reduced the bouncing effect when lowering and raising the balls. The drag is important as I have been hooked up before and having it set properly has saved my boat and equipment. There are very fast but I love that since I can lower and raise the ball to the depths I want when I see a bait ball on my fishfinder. I also don't use weights greater than 15 lbs due to the speed of the riggers. I feel that going heavier will put too much pressure on the base and the boat. I am fine compensating for the blowback with my fishhawk.

Curious as to how the Fishhawk compensates blowback.

[dawg]

It lets you know what your blowback is giving you for actual depth if you have the x4d

Sent from my iPhone using Lake Ontario United

[Bozeman Bob]

^ Thank you.

[bruceleogould]

Maybe won't lose a downrigger but the cable will snap if it bounces too hard even with as little as a 8 lb cannonball and you'll lose the ball and clincher anyways

Newfie Bruce

[Smoke-N-Finn]

Can you say Snubber, would never run any rigger without one. Scotty Snubbers won't be pushing near the water of an Amish.

Sent from my XT1254 using Lake Ontario United mobile app

[Markhum2006]

I have the fish hawk X4D so I know my exact depth and the amount of blowback. Since I got my X4D, i mostly use my 10 lbs weights. Unless I hit currents, I find this weight perfect for my own piece of mind in terms of the boat and equipment.

Sent from my SM-T800 using Lake Ontario United mobile app

[CHAMP99B]

Get the omish shock cords for the balls...it will cure the problem....

Sent from my SM-G900V using Lake Ontario United mobile app

[Smoke-N-Finn]

Here are the Scotties I have been using for years, haven't lost a ball since. I bottom bounce for lakers often on Lake Superior and these flat out save your equipment, and eliminate the "Bounce" when in 3's.

Sent from my XT1254 using Lake Ontario United mobile app

[BrokeOff]

I run 4 of the Mag 10 stx's. Been on boat for the last four years.  The only issue I had were the swivel bases that came with these. Had one totally shatter when I was setting a line.Luckily I was able to grab it before it went totally over.

i had one crack this year as well and cable was down 90 feet... rigger was leaning pretty close to the brink.  Did you call cannon to get a replacement? this swivel base was several years old not new.

[TileMan Dan]

Yeah they replaced but I upgraded to the swivel pedestals and just had to pay the difference. Just check the others for cracks as well.

Edited October 2, 2016 by TileMan Dan
