Connecting my HDS5 to Raymarine sport pilot

[tim]

what do I need or how do I connect my lowrance HDS5 to my Raymarine sport pilot





Sent from my iPhone using Lake Ontario United

[hawkeye625]

Should be 2 output wires on hds to two input ports on pilot computer.

Sent from my SM-G930V using Lake Ontario United mobile app

[hawkeye625]

Sent from my SM-G930V using Lake Ontario United mobile app

[hawkeye625]

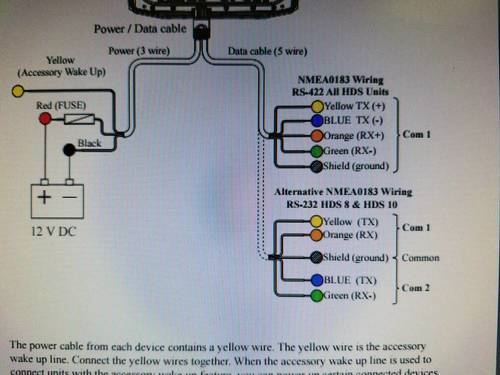

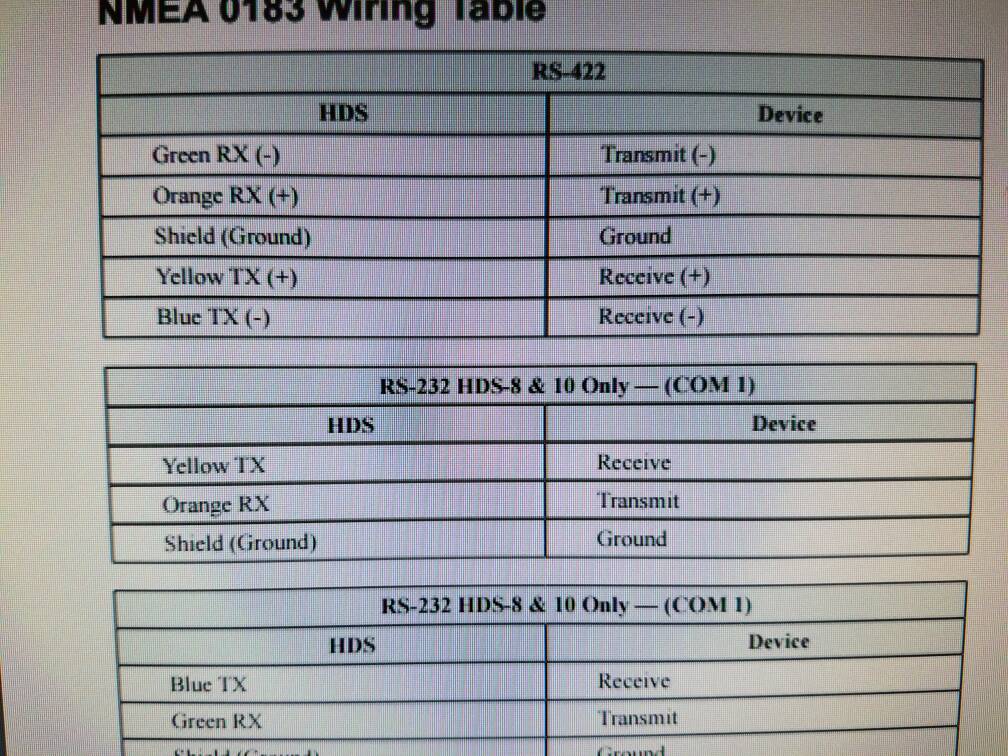

Looks like u use green -, and orange + from hds to in on pilot. Your power cord should split like the bottom diagram shows with nematodes wires.

Sent from my SM-G930V using Lake Ontario United mobile app

[Reel Overtime]

My sport pilot has a cable going to a spliter block, a cable is than just connected to the block and the fish finder,  easy as that...

[tim]

Thanks again


Sent from my iPhone using Lake Ontario United
