What is this part? Down button leak on trim

[FishingTheFL]

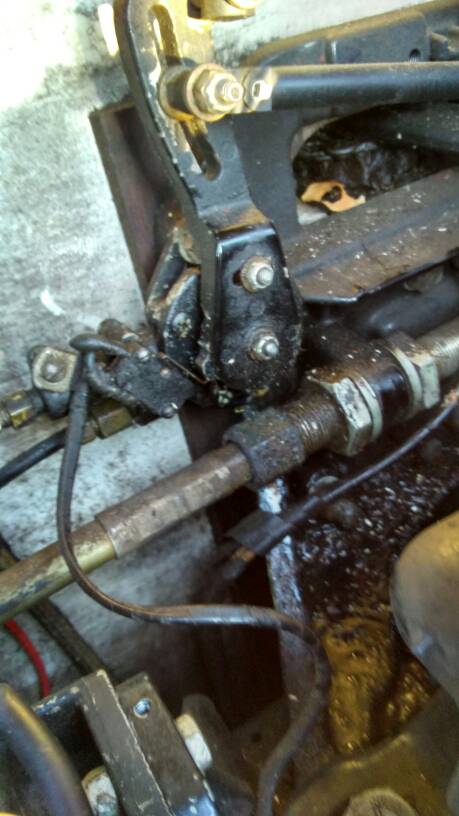

Found my source of oil leak for my trim. Haven't tore it apart yet because tools are on a different project... Started tinkering around with the boat since the off season is here. I also assume this is where the air is getting in the line



Sent from my XT1609 using Lake Ontario United mobile app





[Xxx]

Yea buddy, that’s going to be a knuckle buster, cussing some terminology some never heard before, I think I used the F’ bomb so many times I almost past out!!!! Till I had my rack back in. I also rebuilt mine along with my trim cylinders. Then I went to install the assist cylinder in. Should of waited till I was in a fresh state of mind  OOH to answer your question I enlarged the pic as big as I could, it could be your shift interrupter, with the wires coming off of it. Whatever you do don’t break it or loose it. They don’t make them anymore. I had to fabricate a hole new plate into that area because they sell a whole plate with a different style interrupter on it.

Edited November 18, 2017 by pap

[FishingTheFL]

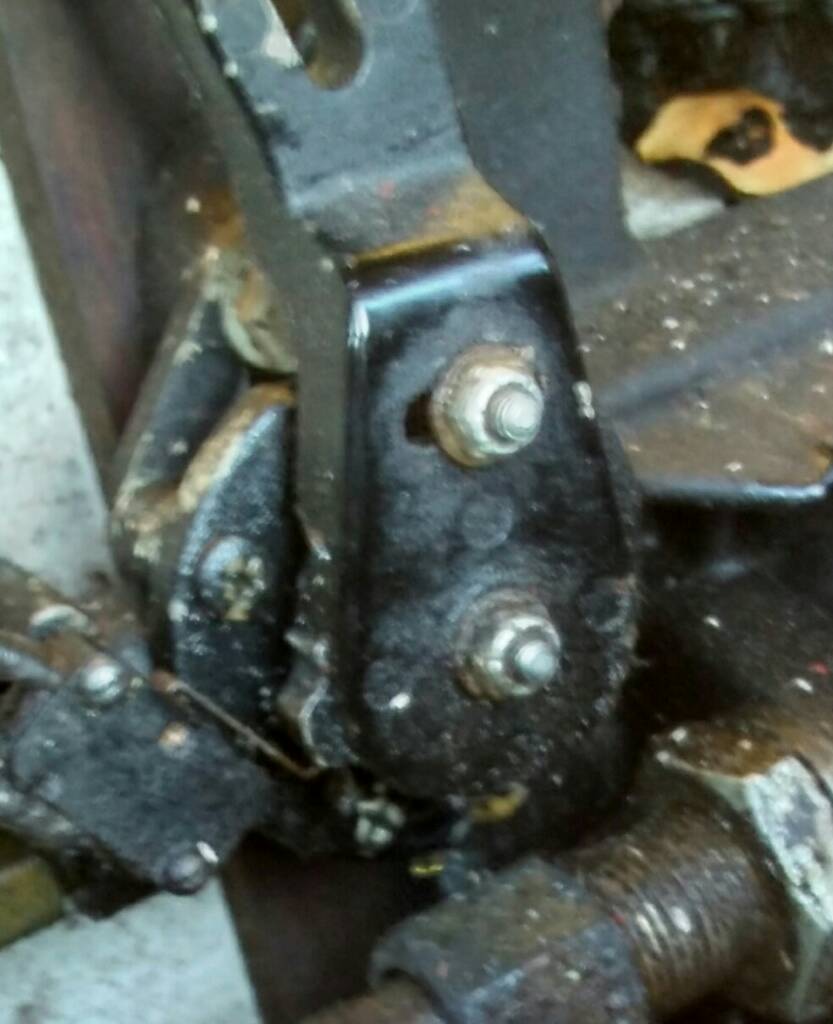

It's actually coming from behind these two bolts. I couldn't figure out the name of the part by the exploded version. I didn't dig into it yet. Had to go look for a pressure oil hose at the dealer for my dump truck

Sent from my XT1609 using Lake Ontario United mobile app

[Xxx]

Now that I see it I see that little piece of spring steel that’s defiantly the shift interrupter switch on the left of that cam looking like piece that has those bolts going through. Is it possible that the bolt length or the nuts rubbed a hole on the hose or the unit??

[FishingTheFL]

I plan on pulling it apart tomorrow. Maybe it is a hose and I can't see it. Diagram shows a hose going up there. Picture doesn't really show a hose going up there. I'll get some more in the morning.

Sent from my XT1609 using Lake Ontario United mobile app
