to many wires going to my batteries

[tim]

I am redoing an Islander I bought and have a question. Between the 2 fish finders  I troll  Fish Hawk Radio downriggers etc.  I have way to many wires going to my 2 batteries. I thought about bus bars but I don't have room to mount them next to the batteries and that is where all the wiring ends up. Anyone have any ideas.  Thanks Tim

[Bad Habit]



This is what I used on my batteries. Cleaned them up nicely. Not sure if this will fit your needs. Just be sure to use in line fuses.



http://johnnyraysports.com/terminals.htm

[Legacy]

I would recommend installing a fuse block.
https://www.amazon.com/gp/aw/d/B001P6FTHC/ref=mp_s_a_1_3?ie=UTF8&qid=1513097010&sr=8-3&pi=AC_SX236_SY340_FMwebp_QL65&keywords=fuse+block+marine&dpPl=1&dpID=51Wn79biAwL&ref=plSrch

Sent from my XT1585 using Lake Ontario United mobile app

[Fishnut]

On ‎12‎/‎12‎/‎2017 at 11:46 AM, Legacy said:

I would recommend installing a fuse block.
https://www.amazon.com/gp/aw/d/B001P6FTHC/ref=mp_s_a_1_3?ie=UTF8&qid=1513097010&sr=8-3&pi=AC_SX236_SY340_FMwebp_QL65&keywords=fuse+block+marine&dpPl=1&dpID=51Wn79biAwL&ref=plSrch

Sent from my XT1585 using Lake Ontario United mobile app


X2



this is the one I use. actually I use 2 of these. (leaves room for expansion)

Edited December 14, 2017 by Fishnut

[ifishy]

I put a fuse block under my dash one on each side makes accessory's easy and fewer wires by the battery

Sent from my XT1080 using Lake Ontario United mobile app

[guffins fisherman]

Yeah.  Mount a fuse block or buss bar at your helm somewhere.

[rolmops]

On my Islander I put a fuse block next to the helm behind the side cover. In addition I also added a shut off switch in the wire toward the battery, mostly because sometimes the electronics on the boat either "leak" power or get forgotten when it is shut off time. That way a little red light reminds me to shut off everything off with one switch.

Edited December 14, 2017 by rolmops

[shawn393]

these blue seas fuse boxes are great. i just installed one on my boat but they are made for breaker box expansion on big boats. so if you install one make sure you put a  fuse between the battery and the fuse box.

Edited December 14, 2017 by shawn393

[laker1]

The fuse advice is great !



I put one into my Lund after I found smoke coming out of my transom.  The accessary wires had rubbed against the internal transom. The dash fuses did not blow as they were intended to.  Instead wire in seeking a common ground burned its way to the sending unit on top of the internal fuel tank. I had turned off the ignition just in time. Now I have a fuse block connecting all my wire with individual fuses just before the battery and the battery itself is only connected with two leads.

[tuffishooker]

Not sure this is an answer to your ? but I put a kill switch to the negative of my battery [ when done the battery is taken out of the circuit  to eliminate chance of a leak or short ] . as posted use a fuse panel with fuses of the correct low rating !

[Decoy Hound]

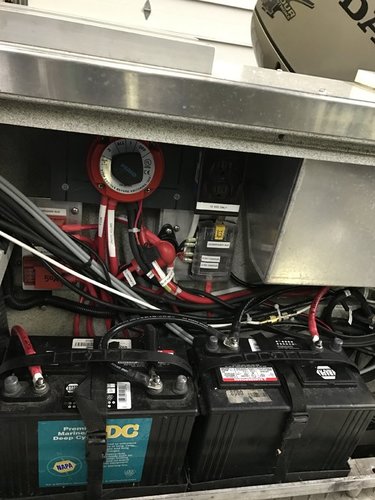

Thought a picture might help, I also have a couple fuse panels at the helm.
