Planer mast ideas with out too much modification

[eafd30]

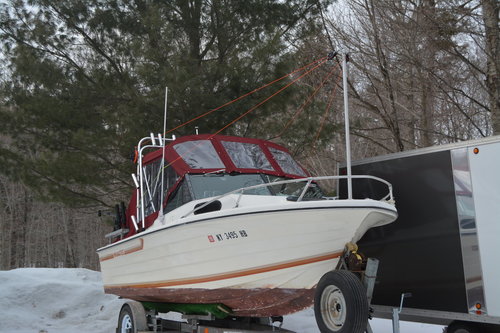

Setting up a new to me boat. Currently the planer reels are mounted on the base of the tower for my rocket launcher mounted about midship or a little further back. My worry is that the angle of the lines will narrow my trolling spread or may even run into my dipsy lines being so close the rear of my boat. Has anyone ever made a mast that is mounted up front on the roof of the cuddy strictly for moving the planer lines forward to increase trolling spread width and clearance for rods ? Pictures and tips or tricks are greatly appreciated





Sent from my iPhone using Lake Ontario United mobile app

[dgfidler]

I have two masts that are track mounted on the gunwale right behind the windshield in pretty much the same spot at yours. I like it. You won’t have to mess with a tether line. Your tow line will be right there where you need it. I’d give it a try before changing anything.


Sent from my iPhone using Lake Ontario United

[eafd30]

I like the idea my only concern is there are no rod holders currently near the rocket launcher , and the base is 2-1/2 inch aluminum and I’m having a heck of a time finding rod holder that would mount to that diameter pipe


Sent from my iPhone using Lake Ontario United

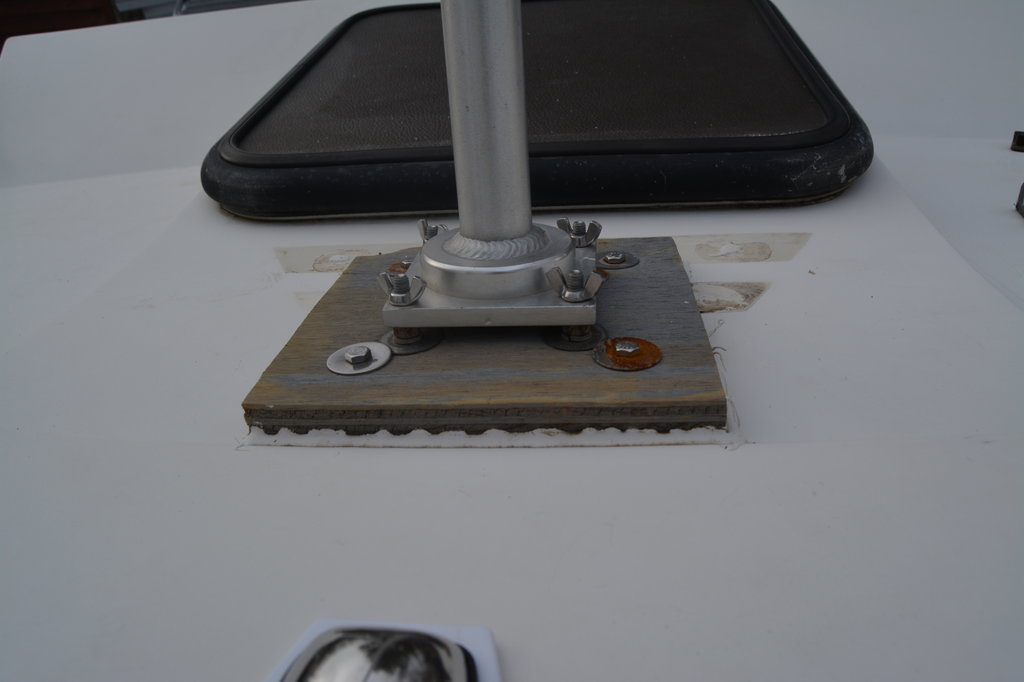

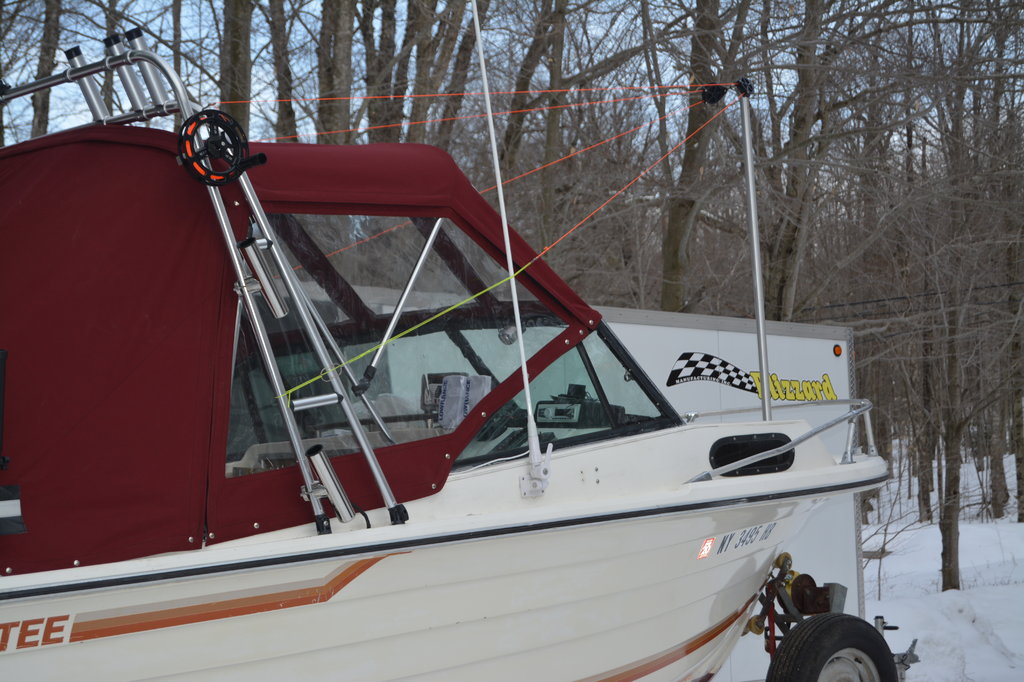

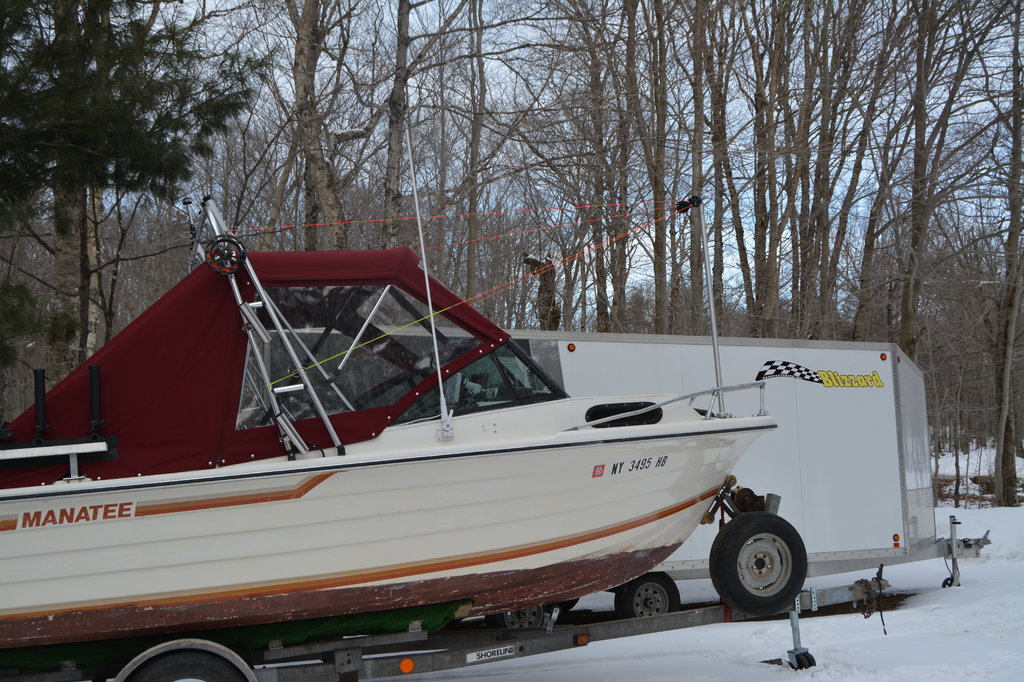

[finsntins]

[eafd30]

That’s what I was thinking of fins, where did you get the mast with just the pulleys


Sent from my iPhone using Lake Ontario United

[spoonfed-1]

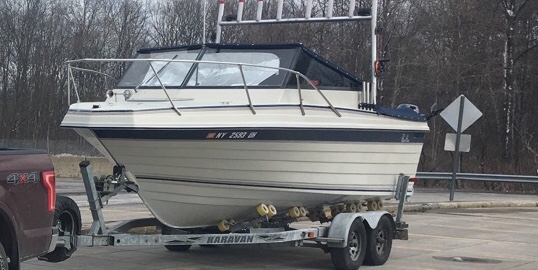

I attached a couple of Big jon pulleys to the rails in front of the 2nd vertical support rail. Fast,easy, no new holes and it works. Picture is a little small but you can see the black pulley just to the right of the antenna. Keeps the tow lines out of the way.







Edited April 9, 2018 by spoonfed-1

[eafd30]

Spoonfed how does that work being so close to the water, I’ve always thought the higher off the water the better


Sent from my iPhone using Lake Ontario United

[spoonfed-1]

Works fine pulling my otter boats. The top of those rails are pretty high up off the water. Generally speaking the higher the better.

[eafd30]

As you can see it looks like we have almost identical setups , although yours looks a bit longer , I think I might try this setup looks pretty good


Sent from my iPhone using Lake Ontario United

[spoonfed-1]

Like I said it's quick and easy to do, no holes. If your not happy you can always add a mast later.

Good luck

[lineman49]

eafd30, my set up is like Fins. hi off the water, releases slide right out/down  & works great.  that is a Big Jon mast & pulleys Fins has.

[Xxx]

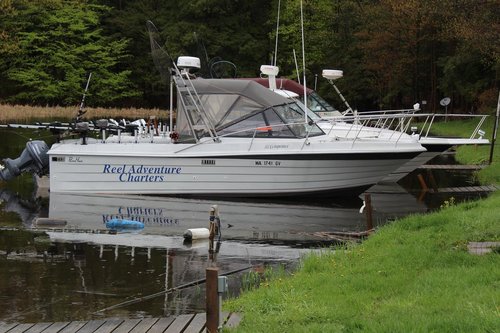

You have good boards that pull hard they’ll be mid ship, if they don’t pull hard that’s when you run into trouble. I have a 22cuddy and I thought I had to have them as high as possible and as front as possibly. I put a mast on the both sides and built my own boards, and those boards are just about straight out. Rod tree mounted right by arch and they work sweet. My boat sits high on the water that makes a big difference!!!
