1985 Grumman leak

[commedic81]

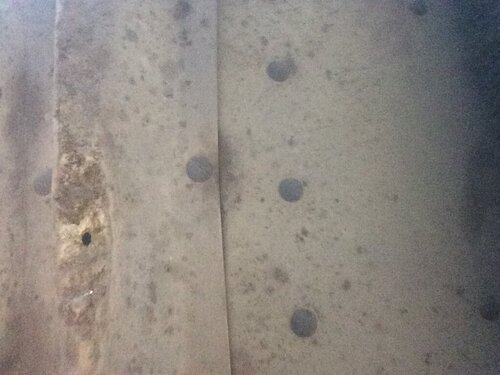

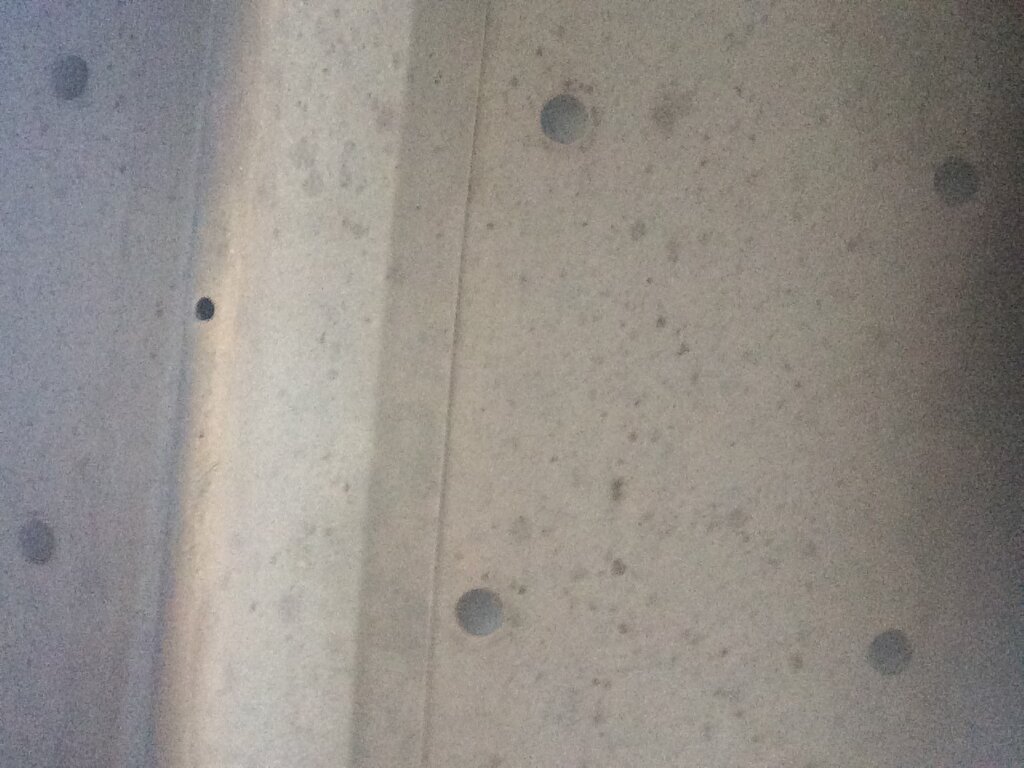

We have a 1985 16 foot Grumman and certain it is taking on water from somewhere. It pumps water out the bilge even though it hasn't rained or no other way of getting water inside. It is an aluminum hull with rivets. It seems to take it on slowly. We got 2 pictures of an area under the boat and I cannot tell if these 2 "holes" could be a culprit or if I need to keep looking. Has anybody else had any similar issues or offer any other places to look?

[lrg355]

Put the boat on th trailer. Fill it with water to just below floor level. You will see water coming from the leaking area

Sent from my SM-J737V using Lake Ontario United mobile app

[greenboatluke]

I filled my boat like suggested above. Found 2 rivets that we loose. Replaced them and it worked.


Sent from my iPhone using Lake Ontario United mobile app

[commedic81]

Thanks. Gonna double check the livewell lines and then fill her up, well at least to the floor

[MCF]

You should check those livewell lines, after 35 years there may be a crack or an issue at the connections

[Hop]

I would second that suggestion.   Cracked hoses were the culprit with leaking on my 1997 fishmaster. Good luck.

[lrg355]

Just put a plug in the intake hole for the live well pump. If it is still taking on water it is probably something else

Sent from my SM-J737V using Lake Ontario United mobile app

[BottomDollar]

Those holes are keel drains. If they weren't there ice would form inside the hollow keel and crack it.

[muskiedreams]

I just want to say that in the second photo, the area of the keel that is dented in could be an issue. It looks like that is where the boat sits on a roller. If that is the case, it is most likely dented in because the boat is bouncing up and down on the trailer on the road. It could cause the hull to crack under or near the keel from the pounding and also damage the roller. I have had that problem. You may need to strap down the bow of the boat to keep that from happening.

[commedic81]

Thanks for the suggestions. We put water in the boat and found 1 rivet up front with a very slow leak and a couple areas on the transom and the motor mount bolts. Believe the mount bolts are due to the transom on its final year cause it is getting soft and didn't have a transom saver on for 2 years. The motor bouncing going down the road didn't do it any favors. We will keep looking

Sent from my HD1907 using Lake Ontario United mobile app
