Grinding the trench.

[Team Perch Lake Effect]

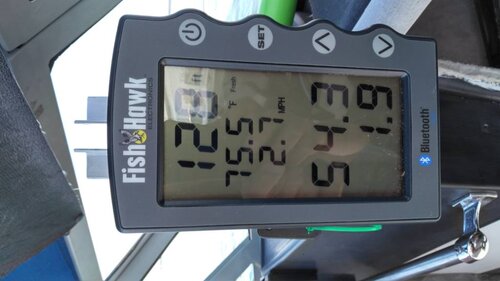

Started in 85' water, dropped probe to 75', 74 degree water, uh oh!! Around 90-95 found 52 degree water over 130'. First fish on a mountain dew spun doctor with green hulk fly. Marking fish around the 85'-100' one 135'. Fish here, just being tight mouthed. Solo run, will throw up more info as it happens.



Sent from my E6910 using Lake Ontario United mobile app





[Team Perch Lake Effect]

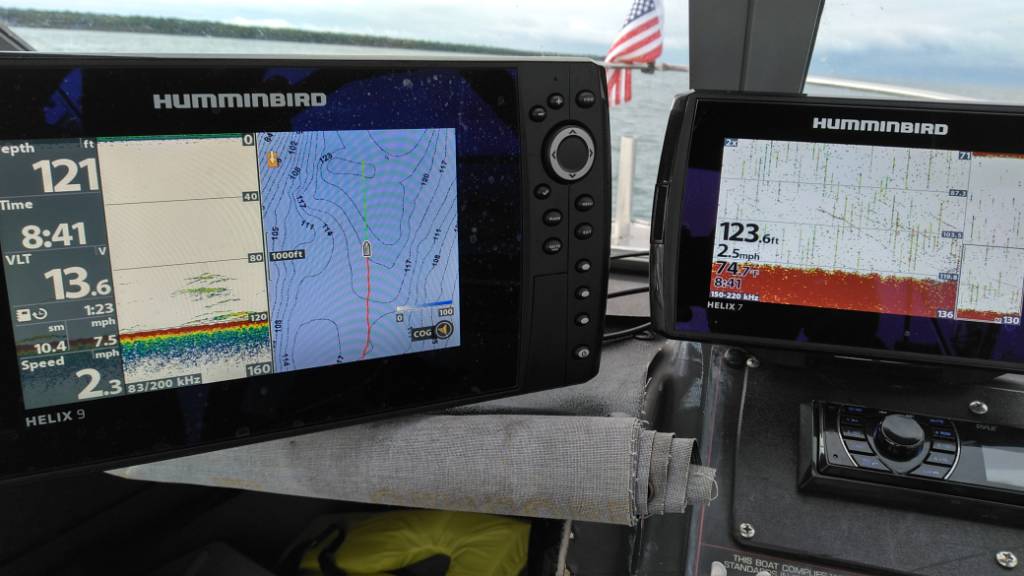

Gotta do a little electrical interference tuning on the second graph. Was a hurry up install! Lol! But, works.

Sent from my E6910 using Lake Ontario United mobile app

[Team Perch Lake Effect]

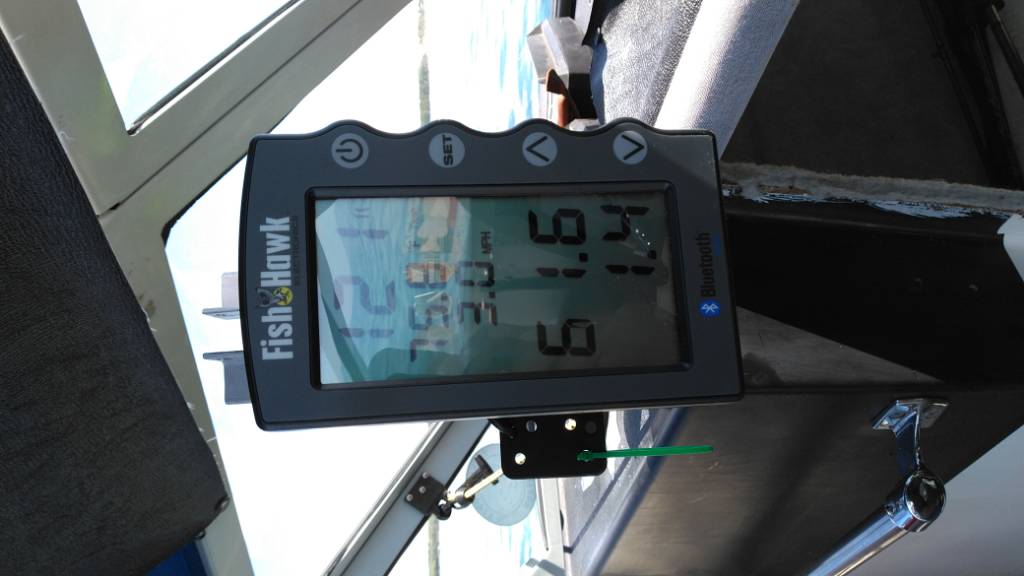

#2. Same set up as #1.

Sent from my E6910 using Lake Ontario United mobile app

[Gill-T]

Not the type of pictures I was thinking would be posted based on the thread title but hey I like fish pictures too.

[Team Perch Lake Effect]

Lol! That's another site.........

Sent from my E6910 using Lake Ontario United mobile app

[Bad Habit]

I have the same interference on my Helix 7. What do you do to fix that problem. I’ve been trying to figure it out for a while now.

[Gill-T]

That interference is from neighboring sonar units.  This only should happen fishing around others.

[Team Perch Lake Effect]

Mine is electrical interference. The Helix 9 right beside it doesn't act up since I put a filter on the power side. The kicker has a charging system that interferes with graphs. Not a true DC signal when charging. It's not sonar interference from another boat. I've never had that issue. Only time that happened is when I was ice fishing with my 7 and another friend was set up real close when we were jigging. Then you use the settings to tune the interference down. I have my Helix transducers on the back and the Fish hawk sender all on the same side about 6" apart. The Helix 7 is angled to try to keep riggers on screen when current isn't absurd.

[Bad Habit]

What kind of filter are you using on the power side?

[Team Perch Lake Effect]

I've had good luck using a ferrite ring, sometimes you may have to go with a inline filter for car stereo equipment. I have a clamp on style. wrapped wire twice worked on the 9. My enemy is everything is routed down the same side of the boat. I tried separating the power and transducer cables best I could, but then the kicker and its system interferes. I see Humminbird has a power cable with a ferrite bead now. Of course, more money! Why not include it on all power cables?? We pay enough for the damn things!!

[Chowdaire]

6 hours ago, Team Perch Lake Effect said:

I've had good luck using a ferrite ring, sometimes you may have to go with a inline filter for car stereo equipment. I have a clamp on style. wrapped wire twice worked on the 9. My enemy is everything is routed down the same side of the boat. I tried separating the power and transducer cables best I could, but then the kicker and its system interferes. I see Humminbird has a power cable with a ferrite bead now. Of course, more money! Why not include it on all power cables?? We pay enough for the damn things!!



Very interesting. My boat has been a nightmare with electrical interference. I fixed a lot of it with some re-routing but still have trouble with the graphs while running the kicker salmon trolling. Unfortunately they don't make the filtered cable for the Solix. I'm going to try the ferrite ring though.



Thanks!

[Team Perch Lake Effect]

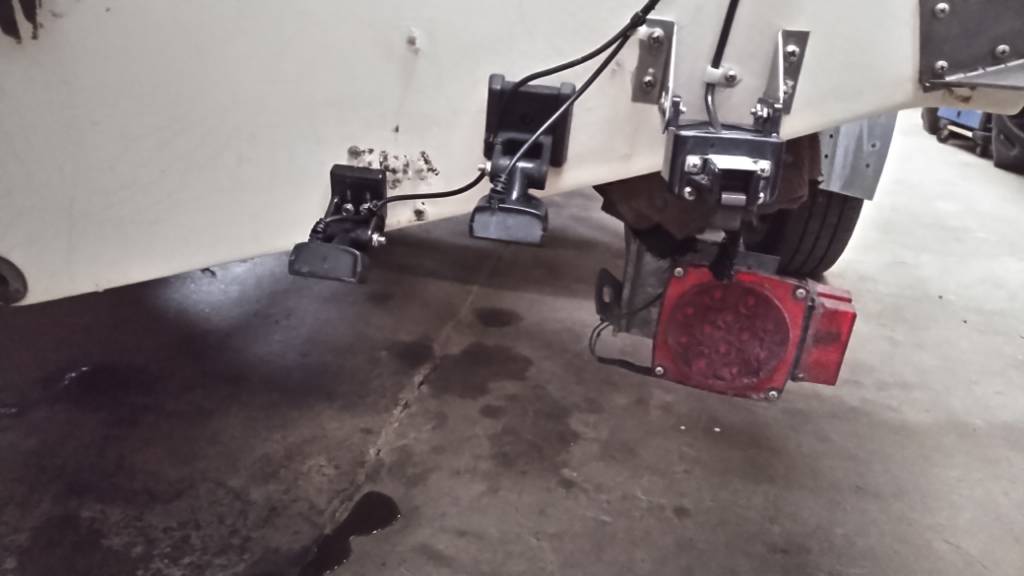

This is the back. I figured I would have created a nightmare, but it all plays together.

Sent from my E6910 using Lake Ontario United mobile app

[Bad Habit]

My interference is a nightmare with my main engine. (No kicker) Is there a specific size or kind of ferrite that should be used?

[thumbburn]

Resistor spark plugs


Sent from my iPhone using Lake Ontario United

[Bad Habit]

Already using resistor plugs.

[Team Perch Lake Effect]

I have the radio shack ones that clip on, found an old stock! Wrapped wire thru twice. Worked for me. Same here, resistor plugs. Not my first rodeo, I deal with electronics for a job, unfortunately.... Lol

Sent from my E6910 using Lake Ontario United mobile app

[Team Perch Lake Effect]

Today in the trench. Hunted, lost 3. Equipment dumb stuff! Line broke, swivel broke, then just plain lost 1!

Sent from my E6910 using Lake Ontario United mobile app
