Walker Down-rigger - auto shutoff question

[dctaz37]

Hello, I have the Walker down-riggers with the auto shut off. There are some metal pieces crimped on the cable and when they pass the sensor it stops the motor. These crimped on pieces were covered by heat shrink tubing and it is coming off. I don't know if the tubing is original or necessary. Would anyone have the answer for this?

[NETBOY101]

http://www.walkerdownriggers.com/why.buy.walker.htm

Sent from my SM-A102U using Lake Ontario United mobile app

[dctaz37]

???? Not sure what the link is for. The contact us doesn't work from that site.

[fisherdude]

The three little pieces crimp down to the cable are the magnets that's what shuts off the auto stop shrink tubing that goes over the the little magnets takes a beating take a pocket knife and scrape off the old shrink tubing get some plastic dip and a little paint brush coat the cable and the magnets and crimps. Will last longer than new shrink tubing and you won't have to take apart the clincher

Sent from my SM-A102U using Lake Ontario United mobile app

[dctaz37]

I saw another post where they said to use liquid electrical tape, thoughts?

[NETBOY101]

Sorry about that fisherdude is right the magnet access an electric current break so your downrigger shuts off

[dctaz37]

8 hours ago, fisherdude said:

The three little pieces crimp down to the cable are the magnets that's what shuts off the auto stop shrink tubing that goes over the the little magnets takes a beating take a pocket knife and scrape off the old shrink tubing get some plastic dip and a little paint brush coat the cable and the magnets and crimps. Will last longer than new shrink tubing and you won't have to take apart the clincher

Sent from my SM-A102U using Lake Ontario United mobile app


It looks like here in Canada it is only sold in an aerosol

[fisherdude]

Looks like you have to take the clincher off and replace the shrink tubing. For parts I go through fish 307 they are located in NY so shipping be expensive. I know they have the replacement kit for it comes with new magnets crimps & Tubing. Good luck with it .

Sent from my SM-A102U using Lake Ontario United mobile app

[dctaz37]

On 8/29/2020 at 11:41 AM, fisherdude said:

The three little pieces crimp down to the cable are the magnets that's what shuts off the auto stop shrink tubing that goes over the the little magnets takes a beating take a pocket knife and scrape off the old shrink tubing get some plastic dip and a little paint brush coat the cable and the magnets and crimps. Will last longer than new shrink tubing and you won't have to take apart the clincher

Sent from my SM-A102U using Lake Ontario United mobile app




Hello, have you tried this method before? If so, please describe the application.  I bought some flex seal which I believe is the same stuff. I used the rigger for one trip and all the rubber is off. I looked at the instructions for Plasti Dip and it is described as peel able.

[fisherdude]

Yes I have used this method been there years and still going strong . The flex seal spray not too sure about that stuff



Sent from my SM-A102U using Lake Ontario United mobile app









[Sk8man]

The Flexseal stuff doesn't hold up well to any rubbing on it and yellows as well. the Plastidip is better in that regard. The Plastidip in the can is thicker than the spray

Edited September 13, 2020 by Sk8man

[dctaz37]

The flexseal came in a can and I painted it one. Fisherdude, do you happen to have the brand name of the product you used and how you applies it? I took the clinchers off and put heat shrink tubing but the end is not tight on the cable so I don't think it is going to last.

[fisherdude]

Plasti Dip 14.5-fl oz Black Dip Rubberized Coating in the Rubberized Coatings department at Lowes.com
https://www.lowes.com/pd/Plasti-Dip-14-5-fl-oz-Black-Dip-Rubberized-Coating/3543512

Sent from my SM-A102U using Lake Ontario United mobile app

[fisherdude]

I used a model car paint brush and throw it away after it's no good after that

Sent from my SM-A102U using Lake Ontario United mobile app

[dctaz37]

Thanks

I think CDN tire has the same stuff for around $26 a can. , did you do one coat or more?



[fisherdude]

One coat let it dry and touch up anything you don't like Let It dry trim with Razer Blade if have to.

Sent from my SM-A102U using Lake Ontario United mobile app

[fisherdude]

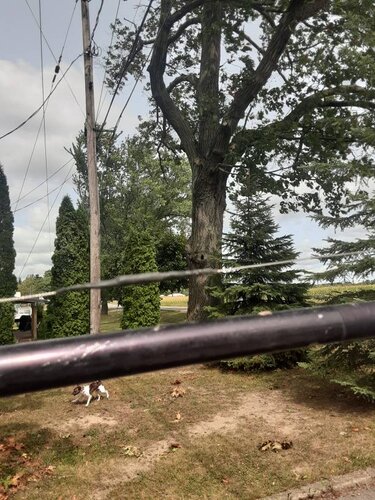

Was working on live well leak so took a pic for you . This is how mine came out. Its got a little wear over time but still going



Sent from my SM-A102U using Lake Ontario United mobile app













[Sk8man]

Got a pic of the little guy in there too Brian

[fisherdude]

She won't let me out of her sight [emoji1787]

Got a pic of the little guy in there too Brian[emoji2]

Sent from my SM-A102U using Lake Ontario United mobile app

[dctaz37]

Thanks, that looks solid. I'll try that once the heat shrink tubing wears off.  I think the tubing I have shrinks 2 to 1 but just ordered some 3 to 1 but will buy some plasti dip, hopefully it goes on sale as $26 for one application is pricey.

[Sk8man]

It goes a long way and you can coat lead weights (eg Seth green weights, downrigger weights etc.) and a variety of stuff with it so not bad in the long run

[dctaz37]

Sorry for so many questions. Did you paint it on a flat surface or hanging vertically? Can you just confirm this is the correct stuff, I checked today and the lid doesn't look like it would seal very good after use.

https://www.canadiantire.ca/en/pdp/plasti-dip-liquid-0482236p.html#srp



Thanks.

[fisherdude]

That is the stuff. I hung the cable vertically and yeah I just kind of painted it on little bit at a time until I got it where I wanted it . You are right the lids don't really seal the can air tight after while it will harden up .



Sent from my SM-A102U using Lake Ontario United mobile app









[Sk8man]

Put the can in a large heavy duty Ziplock freezer bag afterward and squeeze all the air you can out of the bag. It will hold up for quite some time then without hardening

[dctaz37]

Thanks.
