I have a Lowrance HDS Gen 2.

What can I connect to it with an ethernet cable?

Thanks.
Brian

[Andre wallyandre]

Another hds

[Beagler]

Any size and generation?

[Andre wallyandre]

You can mix any generation starting with a Gen3 and up.

Legacy Mode is enabled automatically when:
• When HDS Gen3, SonarHub or StructureScan 3D are not updated with the latest software
• An legacy HDS Gen1, Gen2 or Gen2 Touch unit is on the network
To determine if your system is in Legacy mode, refer to the Sonar settings menu.



Edited January 20, 2021 by wallyandre

[Beagler]

Thank you very much

[Andre wallyandre]

43 minutes ago, Beagler said:

Thank you very much

My pleasure

[lrg355]

You can run the outboard pilot for a trolling motor (not electric), interface to a motor guide (electric) trolling motor directly and interface and display outboard motor data on late model motors. I have done the outboard pilot, Motor Guide and interface to a 4 stroke Yamaha with a HDS gen 2

Sent from my SM-J737V using Lake Ontario United mobile app

[lrg355]

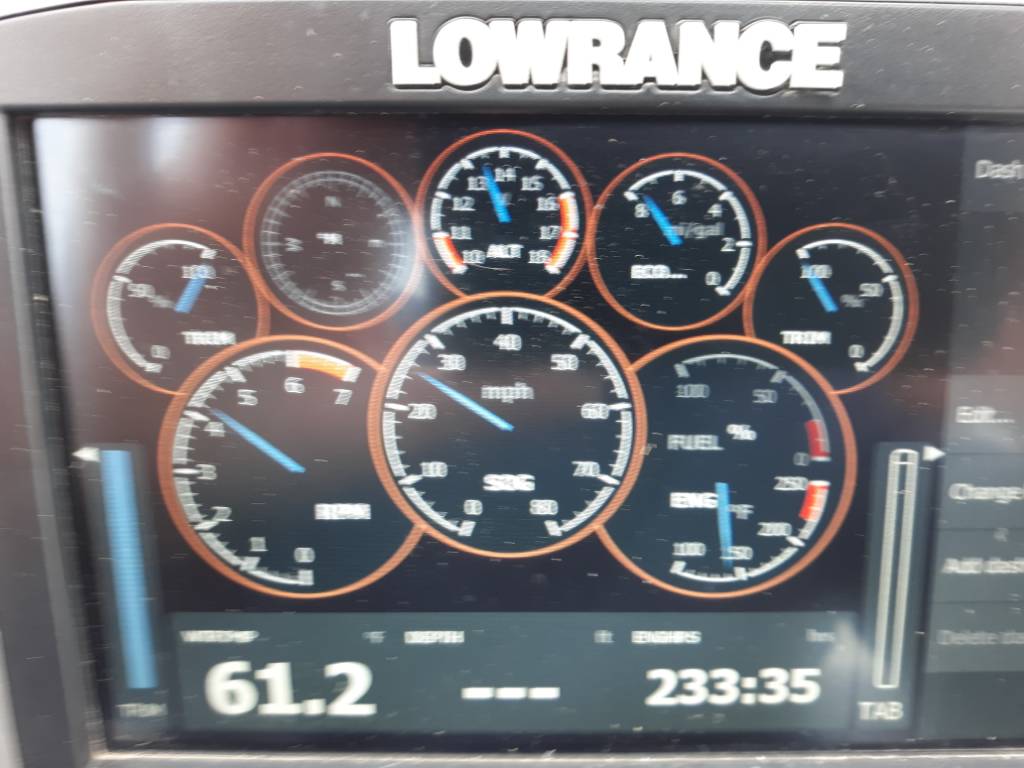

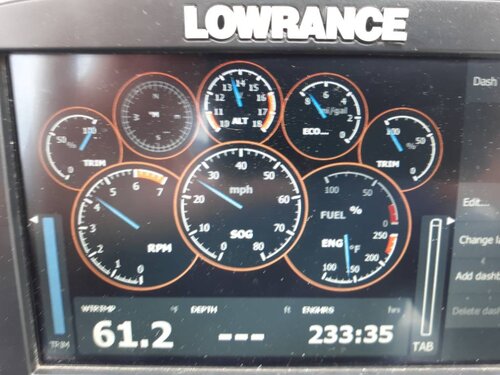

This is a direct display on the nema 2000 network from a 2014 Yamaha 4 stroke.

Sent from my SM-J737V using Lake Ontario United mobile app

[lrg355]

Nice to watch the fuel consumption on the 4 stroke. Best milage is at about 4200 rpm, near 26 mph and almost 8 mpg. Difficult to get this info any other way.
