proos downrigger problem

[launica100]

I have a Proos Down Rigger with Auto Shut Off. I had a problem with the main switch and now I can not figure out how to attach the 3 wires to the Auto Stop on the switch. Can anyone help me? I know this is old equipment but I am up in years and do not want to invest a lot of money in new units. I have a working unit on the opposite side of the boat, but it has a different switch in it so I can not copy it.

[HB2]

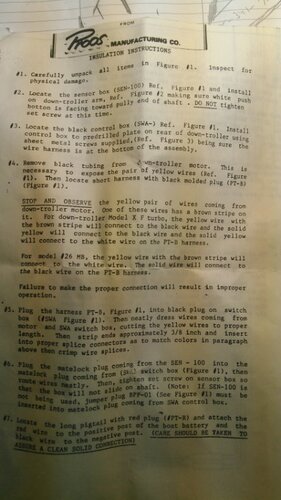

I bought a bunch of proos stuff from a guy . Included was 4  new in package auto stops I will never use if anyone is interested  . When I get home I will post the directions .

[launica100]

Do you have a working unit with the auto stop box attached? If so, could you take a picture of the back of the switch for me so that I can copy the wiring to mine.

[HB2]

[launica100]

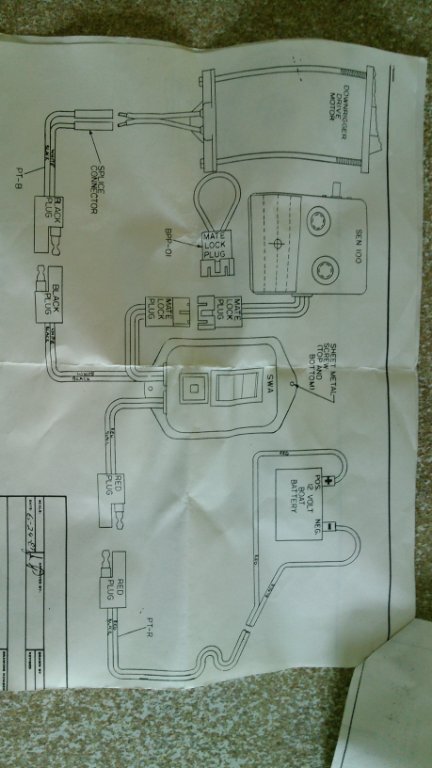

Thank you very much for sending this. The information I need however is where the 3 wires from the lock plug to the switch are placed and what changes need to be made the the primary wire placement.


I very much appreciate you trying to help with this.

[HB2]
