Cannon mag 10 hs

[Hillbillyx-press]

Looking for circuit board   part#  3392002  Everything. Says it’s obsolete.  Thanks for any help.

[Frogger]

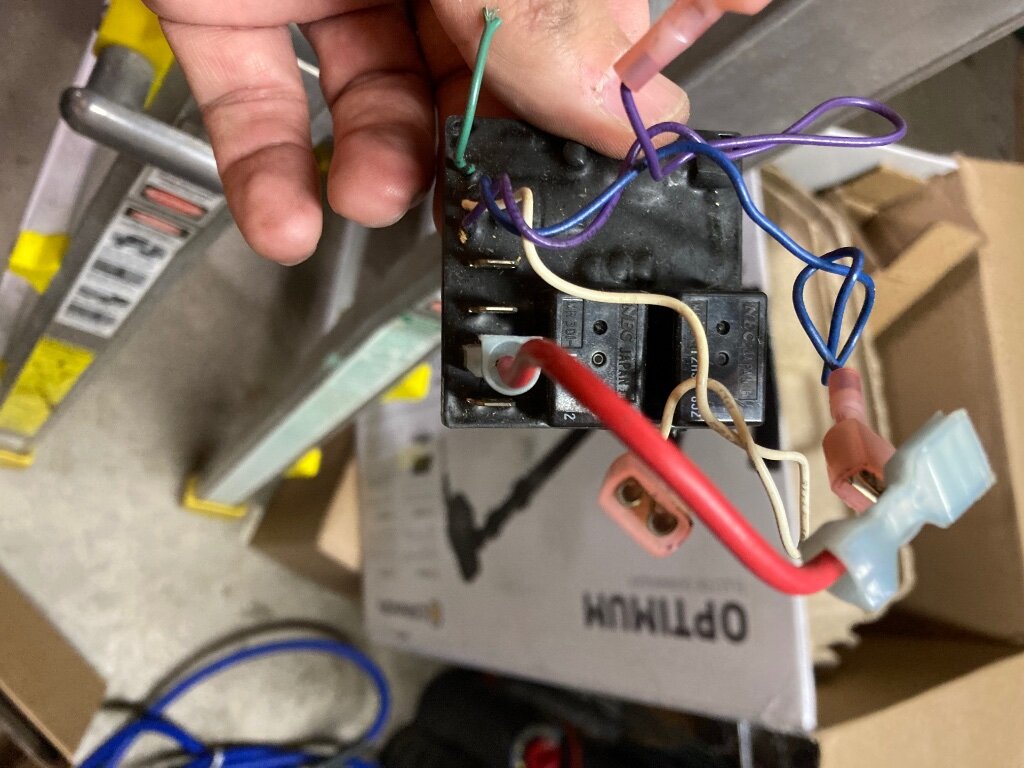

Look like this?

[Hillbillyx-press]

No,not like that.Thanks

[mr 580]

Check with Fish 307 about using a Mag 10STX board #3394006 ilo of the obsolete Mag 10HS board #3394002.  Sounds like the #3394006 will substitute by changing a spade terminal on one wire and using the 10STX wiring diagram.  Looks like that board is in stock and little cheaper than the original one.  Hope this works for you.

[Hillbillyx-press]

Thanks 307 said that board will not work.I’m HillbillyXpress2.We we’re neighbors at Oak Orchard.

[mr 580]

Sure, remember you from the Oak.  If you put the #3394002 number into fish307 site you will see a review from a customer that used the later board in his 10HS.  I looked into your issue as I have a couple 10HS that I put boards in due to moisture.  I sealed top and drilled a small drain hole in bottom-haven’t had an issue since.  It might be worth a few calls to see if anybody has done that swap.  Pretty simple wiring on Cannons so I don’t believe the boards are much different.

[emtystringer]

Okay, like you I'm bummed that this part is labelled "obsolete" by Cannon. It's not obsolete for those of us with Cannon Mag 10HS. So I purchased 3394006 from Fish307 and wired it per instructions for Mag10STX. The only modification was that I had to snip off the connector provided on the green wire and put onto it instead a 1/4" male spade connector (from hardware store). The PCB is slightly bulkier, and so it took perhaps 5 minutes of fiddling to get it to physically fit into the small space, but it does. And works like a charm. And the relay switch is rated at a higher amperage. Important: Follow the wiring diagram for Cannon Mag 10STX and you'll be fine. DO NOT instead try to match up PCB labels like "J1" "J2" etc. The resistor for the motor output on 3394006 is different than for 3394002. But the motor on the Cannon Mag 10HS is bullet proof.

[Hillbillyx-press]

Thanks,I will give it a try.

[Hillbillyx-press]

Got circuit board # 3394006. Where do i find wiring diagram for mag 10stx?

[emtystringer]

I drew up some sort of diagram, hope this helps

[Hillbillyx-press]

My son finally hooked up the Mag 10 HS .the circuit board works.It was a pain to get that board in. Thanks for your help also to Mr 580.

[mr 580]

Good to hear that board worked for you. Have a good season!

[TrophySeeker]

Hey guys. I installed the 3394006 in my Mag 10HS and it is not working. The downrigger lowers really, really fast. But when I try to bring it up it comes up a couple inches really, really slow, and then stops.



Any ideas?

[SHEETMETALBRAKEMAN]

On 7/8/2022 at 6:06 PM, TrophySeeker said:

Hey guys. I installed the 3394006 in my Mag 10HS and it is not working. The downrigger lowers really, really fast. But when I try to bring it up it comes up a couple inches really, really slow, and then stops.



Any ideas?

Have you ever solved this issue? I ran into the same problem

[TrophySeeker]

I believe my problem was I was testing on my smaller boat on the hoist. I did not lower the boat into the water. However - I did not like the super-sonic speed with the new board. I was able to fix my old board. I have an extra of the new one if someone wants to make me an offer.

[SHEETMETALBRAKEMAN]

9 minutes ago, TrophySeeker said:

I believe my problem was I was testing on my smaller boat on the hoist. I did not lower the boat into the water. However - I did not like the super-sonic speed with the new board. I was able to fix my old board. I have an extra of the new one if someone wants to make me an offer.

ok thanks

[Hillbillyx-press]

3394006 circuit board where does green wire attach.  Mag 10 hs.  Thanks

[SHEETMETALBRAKEMAN]

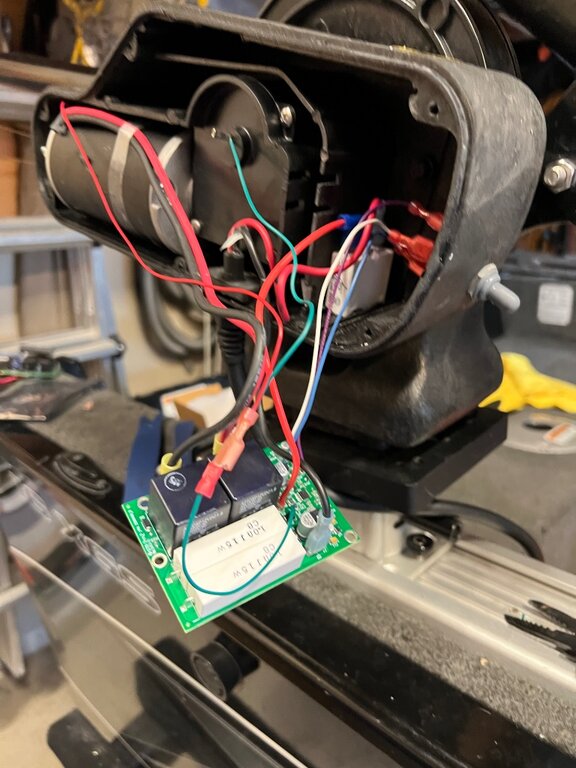

Look at the attached photo.

[Hillbillyx-press]

Thanks sir

[Hillbillyx-press]

Runs up and down will not pick the ball up

[RodBuster]

Hello HillBilly!

It sounds like the motor is either faulty, or is not getting enough amperage.

Take the lead wires to the motor and pull them off the circuit board.  Connect them directly to a 12V power supply for a few seconds to see if this corrects the problem. If it does not, its likely the motor is failing, unless the gear box is bound up (Located below the plate with the 4 screws).

If it does correct the problem, then you probably have either a loose connection or a faulty relay on the circuit board. With the motor leads reconnected, check the voltage at the motor leads while trying to pull up the ball. If it doesnt read around 12V then you have a voltage drop issue.   Work back from there to the battery checking voltage at each connection while under load.  This should tell you where the voltage drop is occurring. Remember this must be done UNDER LOAD.

Good luck...these riggers are no good electrically speaking...I just had one fail last week.....probably 8 failures in 9 years.....

[SHEETMETALBRAKEMAN]

Switch the negative and positive on the board and also switch the light blue and purple on the up and down switch. This will solve your problem

[Hillbillyx-press]

Thank you Sir

[Hillbillyx-press]

Rodbuster thans for your help

[Hillbillyx-press]

Mine was the same way
